Choosing the wrong board thickness for your deck can quickly turn a dream outdoor space into a structural nightmare. A spongy floor feels inherently unsafe underfoot. It often leads to sudden structural failure or severely wasted budget when boards require premature replacement. You simply cannot afford to guess.
Investing in WPC Decking represents a premium choice for modern outdoor living. This engineered material demands precise alignment between the board specifications and your underlying substructure design. A beautiful composite surface means very little if the foundation framing does not match the material's structural requirements.
You need a transparent, evidence-based framework to evaluate decking thickness correctly. We will explore exactly how joist spacing, load requirements, and specific board profiles dictate your final decision. Understanding these variables ensures your new deck remains rigid, code-compliant, and highly durable for decades.
Your deck functions as a dynamic structural system. The surface boards bear the immediate brunt of foot traffic, furniture weight, and environmental stress. Choosing the correct thickness ensures these forces transfer safely into the underlying joists. When you underestimate this requirement, you invite several critical failures.
Deflection refers to the degree a board bends or sags when you apply weight to it. Builders commonly call this the "trampoline effect." If you select a board too thin for your joist span, it will bounce every time you walk across it. Over time, repeated bending weakens the composite material matrix. High foot traffic areas exacerbate this issue. Heavy static loads, such as hot tubs, cast-iron grills, or substantial outdoor furniture, will cause permanent sagging if the board lacks the required thickness to bridge the gap between joists.
Local building regulations rarely leave deck safety up to chance. Most municipal building codes mandate strict minimum load-bearing capacities. For standard residential decks, the baseline is usually 40 pounds per square foot (psf) for live loads, alongside 10 psf for dead loads. These codes dictate the minimum thickness allowed for specific joist spans. Failing to meet these standards not only poses extreme safety hazards but also guarantees you will fail municipal building inspections. You might even face complications if you try to sell your home later.
Temperature fluctuations violently test outdoor building materials. WPC materials expand in the heat and contract in the cold. Insufficient thickness significantly accelerates thermal expansion risks. Thin boards absorb heat quickly and lack the physical mass to resist warping or cupping. As they distort, they place tremendous sheer force on the hidden fasteners holding them down. This continuous stress eventually causes fastener failure, leading to loose boards and a drastically reduced lifespan for your entire outdoor project.
Manufacturers engineer deck boards in distinct thickness categories. They design each category to solve specific structural challenges. Understanding these groupings helps you quickly eliminate options unsuitable for your project.
Thin profile boards occupy a very specific niche in the composite decking market. Manufacturers do not design them for structural spanning.
This category represents the workhorse of the composite decking industry. Most major brands focus their primary product lines within this range.
When residential standards fall short of project demands, thick profile boards step in to handle extreme usage.
Thickness only tells half the story. The internal geometry of the board plays a massive role in how it handles physical loads. You must evaluate the cross-sectional profile to understand the true strength of the material.
Solid WPC boards mimic traditional lumber. They rely on pure physical mass for their strength. A standard 25mm solid board provides excellent durability and superior impact resistance. However, this dense core adds significant dead load to your substructure. The heavy weight makes them harder to transport, more difficult to cut, and exhausting to carry during installation. They also retain heat longer in direct sunlight due to their dense, continuous core.
Engineered hollow boards present a highly advanced alternative to solid mass. However, not all hollow boards perform equally. Traditional square-hole hollow boards can suffer from structural crushing under heavy loads because corners act as stress concentration points.

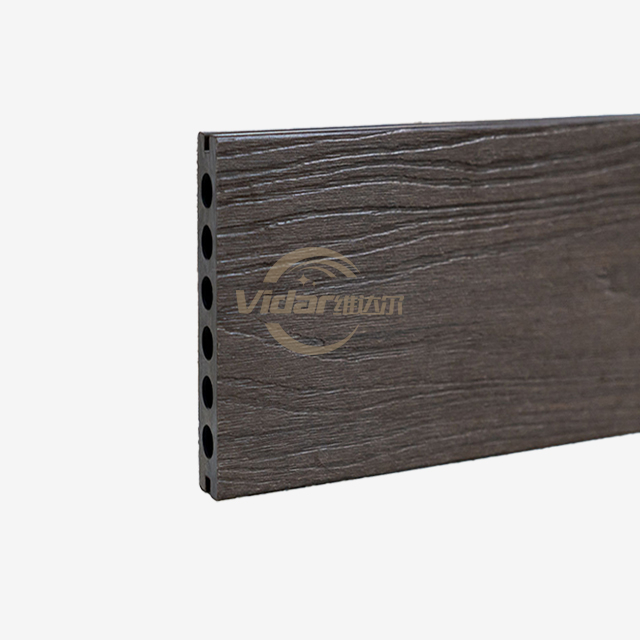

Conversely, the engineering logic behind a circular void design is vastly superior. Circular voids dissipate vertical stress evenly throughout the material. Arches naturally resist compression. Because of this architectural geometry, a 25mm Round Hole WPC Decking board can achieve comparable load-bearing strength to a completely solid board of the exact same thickness.
Furthermore, these round channels provide superior heat dissipation. Airflows through the core, keeping the deck surface cooler. You also benefit from drastically lower shipping costs and much easier handling on the job site due to the reduced material weight.
Profile and Thickness Decision Matrix
| Profile Type | Best Thickness Range | Key Structural Benefits | Ideal Application |
|---|---|---|---|
| Solid WPC | 22mm - 25mm | Maximum impact resistance, mimics real wood weight. | High-traffic stairs, commercial edges, heavy point-load areas. |
| Round Hole Hollow WPC | 23mm - 25mm | Excellent strength-to-weight ratio, superior cooling. | Standard residential decks, elevated platforms, hot climates. |
| Square Hole Hollow WPC | 25mm+ | Lightweight, highly budget-friendly. | Low-traffic residential areas, privacy screens, cladding. |
This decision matrix guides you to match the profile type accurately with the thickness. You should never choose an ultra-thin square hollow board for high-impact commercial areas, just as you might not need the excess weight of a 30mm solid board for a small, low-to-the-ground residential patio.
You cannot finalize your board thickness without knowing your joist spacing. The two elements are inextricably linked. The distance between the center of one joist to the center of the next joist dictates exactly how thick your composite boards must be to span the gap safely.
Some homeowners try to save upfront material costs by purchasing thinner decking (e.g., 20mm). To make these thin boards safe, you must tighten your joist spacing to 12 inches OC. However, this strategy often backfires. Forcing the addition of more framing timber increases your lumber costs significantly. Furthermore, installing more joists requires more metal hangers, more structural screws, and substantially more labor hours. The savings on the thin WPC boards are frequently wiped out by the inflated cost of the reinforced substructure.
This serves as the universal baseline for residential deck construction. Almost all building codes and manufacturer warranties revolve around the 16-inch OC framework. We strongly reiterate that the industry standard 25mm thickness is universally evaluated against this specific span. A 25mm board on 16-inch joists provides a rigid, comfortable feel without requiring excess framing lumber. It represents the perfect equilibrium between structural performance and material cost.
Certain architectural designs, commercial rollouts, or diagonal decking patterns demand wider joist spans. When framing at 24 inches OC, standard 25mm boards will bend dangerously. You must upgrade to 28mm or 30mm thickness. Upgrading to a 30mm board allows you to build with fewer joists. This is highly advantageous for complex commercial designs or when working over difficult terrain where minimizing ground contact points is necessary.
Joist Span to Thickness Reference Chart
| Joist Spacing (On-Center) | Minimum Recommended WPC Thickness | Structural Notes |
|---|---|---|
| 12 Inches | 20mm - 21mm | Requires 33% more framing lumber than standard builds. |
| 16 Inches | 22mm - 25mm | The industry standard. Offers the best balance of cost and rigidity. |
| 24 Inches | 28mm - 30mm+ | Mandatory for commercial applications and diagonal board layouts. |
When you sit down to order your materials, you must look past the initial price tag of the boards themselves. A successful project requires balancing upfront spending against long-term structural viability.
We often see buyers fall into the trap of a false economy. Buying cheap, thin boards might look attractive on a preliminary invoice. However, if those boards lead to premature replacement due to warping, or if they require excessive substructure reinforcement just to remain safe, you have actually lost money. You must break down the financial efficiency of the entire system. A thicker, well-engineered board might cost 15% more upfront, but it prevents the massive expense of rebuilding a failed deck five years down the line.
Your thickness choice ripples through the rest of your hardware procurement. Thicker boards inherently require longer fasteners to achieve the necessary penetration into the wooden joists. If you opt for a 30mm board, standard screws will not bite deep enough to prevent uplift. Additionally, you must consider hidden fastening systems. Different board thicknesses often feature different side-groove geometries. You must ensure your selected hidden fastening clips perfectly match the groove height of your specific board profile, or the boards will rattle loosely.
To finalize your decision, follow this precise order of operations:
A: We strongly advise against this. Using a 20mm board on a 16-inch span causes unsafe deflection and severe bouncing underfoot. Furthermore, nearly all manufacturer warranties strictly void if you install their thin boards over improper spacing. Always use at least 22mm-25mm thickness for 16-inch center spans to ensure safety and code compliance.
A: Yes. For standard residential loads, the arch structure of the round holes provides exceptionally high compressive strength. The circular voids dissipate stress evenly, allowing it to perform similarly to a solid board while drastically reducing the overall material weight and improving heat dissipation.
A: Most older wooden decks utilize traditional 5/4-inch lumber boards, which have an actual thickness of approximately 25mm, built on 16-inch centers. Choosing a matching 25mm WPC board ensures perfect compatibility. This allows you to utilize your existing, healthy deck frame without needing to rebuild or reinforce the substructure.
