Installing WPC Wall Panels outdoors requires more than careful fitting. Poor drainage or incorrect spacing can cause costly problems. This guide explains each installation step, from wall preparation to final inspection. Learn how to secure panels, manage expansion, and improve long-term exterior performance.
Start by checking the wall where the cladding will be installed. The surface should provide a suitable base for the planned support framework. Look for loose masonry, damaged render, cracks, water stains, and areas showing signs of movement. These problems should be assessed before any panels cover the wall.
The existing wall must also support the selected anchors and fasteners. Concrete, brick, timber, and lightweight wall systems have different fixing requirements. Do not assume a fastener suitable for concrete will work safely in hollow masonry or another substrate. Select the anchoring method according to the wall material and project design.
Check the wall for moisture problems before installation. WPC panels do not automatically solve leaks or dampness behind existing walls. Water entry should be investigated and corrected before the cladding system is fitted. Contractors should also identify pipes, cables, and other hidden services before drilling.
For larger projects, record the wall condition and any repairs required. This gives installers a clear starting point and helps project managers track preparation work. If the wall's stability or load-bearing capacity is uncertain, seek advice from a qualified building professional before proceeding.
Accurate measurements help reduce cutting waste and prevent shortages during installation. Measure the wall's height and width, then calculate its total area. Identify windows, doors, corners, columns, vents, and other openings that affect the panel layout. Measure these features separately and mark their positions on a drawing.
Next, confirm the panel's effective coverage width. The nominal board width may differ from the width covered after installation. Interlocking edges, grooves, and overlaps can change the final coverage. Use the supplier's dimensions and installation guidance when estimating the number of panels required.
Allow for cutting waste around openings and corners. The required allowance depends on the wall design, panel length, and installation pattern. Avoid applying an arbitrary waste percentage to every project. A detailed layout can provide a more reliable estimate, especially when the wall includes many windows or irregular sections.
Plan the starting point and direction of installation before ordering materials. This helps maintain consistent joints and reduces narrow offcuts near visible edges. Check whether the design requires matching colors, continuous patterns, or specific corner trims. Include compatible accessories in the material calculation so the installation can proceed without unnecessary delays.
Prepare the tools before work begins. Typical equipment includes a tape measure, level, chalk line, drill, suitable cutting tools, and protective equipment. The exact tool selection depends on the panel material, profile, substrate, and approved installation method. Follow the tool manufacturer's safety instructions during cutting and drilling.
Fasteners must match both the panel system and the supporting framework. Check the required screw type, clip design, anchor specification, and corrosion resistance. Exterior installations face rain and temperature changes, so unsuitable metal components may deteriorate over time. Do not replace specified clips or screws without confirming compatibility.
The project may also require battens, brackets, corner trims, edge profiles, and suitable flashing details. Prepare these items before starting the first panel. Missing accessories can interrupt installation or encourage improvised finishing methods. Such substitutions may affect panel movement, drainage, and appearance.
Store panels on a clean, stable, level surface. Protect them from damage during transport and handling. Follow the manufacturer's instructions for storage, temperature conditions, and any required preparation before installation. Check delivered quantities and visible damage before work begins.
Different WPC wall panels can have different dimensions, internal structures, surface finishes, and fixing requirements. Confirm the exact product code and profile before preparing the framework. Check the nominal dimensions, effective coverage, recommended support spacing, and approved installation direction. These details determine how the system should be assembled.
Review the manufacturer's instructions for expansion gaps and fixing positions. Composite materials can move as temperatures change, so panels should not be installed as though they were completely rigid. The required clearances vary by product and installation conditions. Do not use a universal gap measurement unless the manufacturer specifies it for the selected panel.
Confirm the panel's intended application as well. A product designed for exterior wall cladding may have different requirements from an interior decorative panel. Check any available information on weather exposure, surface treatment, cleaning, and compatible accessories. Avoid assuming that a waterproof product description guarantees the entire wall assembly will be waterproof.
Vidar provides different WPC wall panel options for building applications. Buyers can review the WPC wall panel product range and confirm the details of the chosen profile before construction. Product selection should match the building design, substrate, exposure conditions, and installation system.
Tip： Confirm panel dimensions, fixing details, and expansion requirements before ordering the complete project quantity.
Once the substrate is ready, establish the installation reference line. Use a level or laser to mark the starting position and check the intended panel direction. For horizontal cladding, confirm the first row is level. For vertical cladding, establish a reliable vertical reference. Small alignment errors at the beginning can become more visible across a large wall.
Mark the positions of the supporting framework and any openings. Check these marks against the installation drawing before drilling. Remove dust, loose material, and other debris from the work area. Confirm that planned fixing points will not interfere with concealed services or unsuitable sections of the wall.
The finished panel position also matters. Consider window and door clearances, external corners, roof edges, and the transition to the building base. Plan these details before fixing the first batten. A clear reference layout reduces repeated adjustments during installation.
Install the battens or metal subframe using the approved fixing method. The framework creates a stable mounting surface and supports the panels across the wall. Its material and fixing arrangement should suit the substrate, outdoor exposure, and selected panel system. Check the framework drawing and manufacturer's instructions before installation.
Position each support according to the specified spacing. Check alignment, level, and the stability of every fixing point. An uneven framework can produce visible waves across the finished cladding. Weak anchors may also compromise the system, even when the panels themselves are correctly installed.
Pay particular attention to panel ends and joints. These locations may require additional support according to the product design. Do not leave a joint unsupported unless the installation system expressly permits it. Check the framework before covering it, because repairs become harder after the panels are fitted.
Before installing the panels, inspect the complete framework. Use a straightedge or level to identify misaligned sections. Correct problems before proceeding, rather than forcing the boards into position. Excessive pressure can damage edges or create inconsistent joints.
Exterior cladding also needs suitable moisture management. Depending on the wall system, the design may require a cavity, drainage route, or ventilation space behind the panels. Keep these paths open and follow the specified details around the base, openings, and top edge. Do not block drainage outlets with sealant or decorative trims.
The correct arrangement depends on the building design and product instructions. WPC wall panels alone do not guarantee a weatherproof wall assembly. Flashing, seals, membranes, and other building components may be needed to manage water entry. Coordinate these details with the project designer before closing the wall.
The first panel establishes the alignment of the remaining cladding. Position it against the reference line and check its level or vertical alignment. Confirm the correct orientation of grooves, clips, or interlocking edges before fixing it. A misplaced starting panel can cause cumulative errors across the wall.
Use only the approved fixing method. Some profiles use clips, while others require specified mechanical fasteners. Position fixings as directed and avoid overtightening screws. The panel should remain secure without restricting the movement permitted by its design.
After fixing the first panel, check its alignment again. Confirm that the edges meet the intended starting and finishing details. Correct any error before moving forward. This simple check can prevent extensive adjustments later in the installation.
Continue installing panels according to the selected system. Engage interlocking edges or clips carefully, then secure each panel using the specified procedure. Keep the joints consistent and check alignment regularly. Do not assume that a panel is correctly seated simply because its edge appears close to the previous board.
Follow the required expansion clearances at ends and fixed structures. Avoid forcing panels tightly together unless the manufacturer specifies that connection. Temperature changes can cause composite materials to expand or contract. Insufficient clearance may contribute to distortion or pressure at joints.
Inspect the work at regular intervals rather than waiting until the entire wall is finished. Check fastening points, surface alignment, joint consistency, and the condition of panel edges. If a board becomes damaged during installation, replace or address it according to the manufacturer's guidance. Concealing the damage can make later repairs more difficult.
Measure each opening carefully before cutting. Mark the cut line on the panel and check the measurement again. Use suitable cutting equipment and support the board to prevent unwanted movement during cutting. Follow safety guidance and wear appropriate eye and respiratory protection where required.
Leave the clearances specified for the selected panel system. Avoid cutting too close to a fixing point or leaving an unsupported edge. Where the layout includes corners or complex openings, confirm whether additional framework is required. The support arrangement should match the approved installation details.
Use compatible trims or finishing components around exposed edges. These can improve appearance and help protect the panel edges, but they should not obstruct required drainage. Check the finished details against the building design before continuing. Careful cutting and edge planning usually produce a cleaner result than attempting to hide inaccurate cuts afterward.
Finish the wall using the approved top caps, base trims, corner profiles, and other specified accessories. Check that each component fits the selected panel profile. Avoid improvised parts that may interfere with thermal movement or water management.
Inspect the top and bottom edges carefully. These areas often need specific details to manage water and debris. Ensure that drainage routes remain open and that any required ventilation space is preserved. Seal only the locations identified by the approved system design.
Finally, review the full wall from several angles. Check alignment, joint consistency, visible fasteners, edge finishing, and any signs of surface damage. Confirm that panels are secure and that no components have been forced into place. Record any outstanding defects and correct them before handing over the project.
Tip： Inspect each completed section before proceeding, especially around joints and openings.
The supporting framework must match the wall substrate and outdoor environment. Metal battens may suit some systems, while treated timber supports may be permitted in others. The right choice depends on the product instructions, local building requirements, moisture exposure, and expected service conditions.
For metal frameworks, consider corrosion resistance and compatibility with the specified fasteners. Coastal or persistently damp environments may require particular attention to material selection. Timber frameworks, where approved, should meet the relevant treatment and installation requirements. Neither option should be selected on price alone.
Check the support dimensions and fixing arrangement before ordering. The framework must provide adequate support for the cladding system and transfer loads safely to the building structure. If the wall substrate is weak or uncertain, obtain professional advice before installing anchors.
Batten spacing determines how the panels are supported across the wall. The required distance varies according to panel dimensions, profile design, installation direction, and manufacturer specifications. A hollow panel may have different support requirements from another profile of similar external dimensions.
Follow the spacing given in the product's installation documentation. Do not copy a measurement from another brand or assume every WPC wall panel uses the same layout. Wider spacing may leave unsupported sections, while an unsuitable framework arrangement can complicate fixing and finishing.
Confirm the support locations before installation begins. Mark them clearly and check their alignment across the wall. Where the project includes corners, openings, or panel joints, use the specified support details. If the installation differs from the standard layout, obtain technical confirmation before proceeding.
The fixing method must suit the actual wall material. Concrete, solid brick, hollow masonry, timber, and lightweight wall systems do not provide the same anchoring conditions. Select anchors and fasteners approved for the substrate and expected loads.
Follow the anchor manufacturer's installation requirements. These may specify hole dimensions, embedment depth, edge distances, and tightening procedures. Poor installation can reduce fixing reliability even when the correct anchor has been selected. Avoid drilling into damaged or unsuitable sections without assessing their condition.
For projects involving raised structures, large exterior walls, or unusual substrates, a qualified professional should confirm the fixing design where necessary. Record the approved components and installation details so contractors can follow a consistent method across the site.
Exterior wall systems may need a cavity behind the cladding to help manage moisture and allow airflow. The required design depends on the building assembly, climate, and product instructions. A suitable cavity can support drying, but it does not replace proper flashing, waterproofing, or weather detailing.
Keep drainage paths clear at the bottom and around designated openings. Do not fill the cavity with debris or block outlets using trims. Check the top and bottom details against the approved drawings, especially where the cladding meets windows, roofs, or other materials.
Tip： The cladding is only one part of the exterior wall's moisture-control system.
Exterior corners need accurate measurements and compatible finishing components. Depending on the panel system, installers may use corner trims, edge profiles, or other approved details. The chosen method should provide a neat transition without damaging panel edges or restricting movement.
Check whether the corner requires additional framework. Both sides of the corner must have suitable support where the installation design requires it. Align the panels before securing the finishing profile, and confirm that the trim fits the selected board dimensions.
Corner details should also manage water correctly. Avoid arrangements that direct rainwater into exposed joints or trap debris behind the cladding. Follow the manufacturer's instructions and the project's weatherproofing details, particularly on exposed building elevations.
Window and door openings require careful planning because they interrupt the regular panel layout. Measure each opening and mark the cut positions before removing material. Check the dimensions against the actual site conditions rather than relying only on architectural drawings.
Provide support around cut edges where the installation system requires it. Use compatible trims and coordinate the cladding with window flashing, door frames, and other weatherproofing components. The panel finish should not block drainage routes or interfere with the opening's operation.
Inspect the finished edges for gaps, damage, and uneven alignment. If the cut leaves a narrow or unsupported panel section, revise the layout or add suitable support according to the approved design. Do not rely on sealant alone to correct a poorly planned joint.
WPC panels can expand and contract as temperatures change. The required clearance depends on the product, panel length, installation temperature, and expected environmental conditions. There is no single gap measurement suitable for every exterior cladding system.
Follow the manufacturer's specified clearances at panel ends, corners, openings, and fixed structures. Check whether the instructions distinguish between end joints and side joints. Installers should also confirm the recommended fastening method, since some fixing arrangements permit movement while others may restrict it.
Do not force panels tightly against rigid structures unless the system specifically requires that detail. Insufficient clearance can contribute to buckling, joint pressure, or visible distortion. Record the installation conditions where necessary, especially for large projects installed across different seasons.
Panel ends and horizontal joints need suitable support and finishing. The required detail depends on the panel profile and the direction of installation. Check the drawings to determine where joints should fall and how exposed edges should be covered.
Avoid placing joints where the installation system cannot support them adequately. Where panels meet, maintain the specified clearances and use approved connectors or trims. Ensure that the joint arrangement does not block drainage or create an unintended path for water entry.
Before covering the joints, inspect the support and fastening details. Confirm that the panels align and that each connection follows the approved method. Proper planning helps reduce visible inconsistencies and makes future maintenance easier.
Tip： Confirm corner, opening, and expansion details before cutting panels to final length.
An unstable substrate can undermine the complete cladding system. Loose render, damaged masonry, and unresolved moisture problems may affect anchor performance or cause alignment issues. Installing panels over these defects hides the problem without correcting it.
Inspect the wall and complete necessary repairs before installing the framework. Confirm that the selected anchors suit the substrate. If the wall shows signs of structural movement, obtain professional assessment before covering it.
Fasteners must match the panel profile and support material. Incompatible screws or clips may fail to secure the panels correctly. Overtightening can damage the board or restrict movement, while loose fixings may allow unwanted movement.
Use the specified components and follow the installation sequence. Do not substitute fasteners simply because they are available on site. Check the fixing points during installation and correct damaged connections before covering them.
A cladding system needs suitable details for the building's exposure conditions. Blocked drainage routes or an incorrectly designed cavity can interfere with moisture management. Poor detailing around windows, doors, and the roofline may also allow water to enter the wall assembly.
Follow the approved design for flashing, drainage, and ventilation. Keep outlets clear and check the completed edges. Where the building faces strong winds or frequent rain, confirm that the selected product and fixing system suit those conditions.
Incorrect support spacing can leave panels inadequately supported. Insufficient expansion clearance may also restrict movement during temperature changes. Both errors can contribute to distortion, uneven joints, or repair work.
Use the exact product instructions to set the framework and gaps. Check the layout before installing the boards, then inspect the joints as work progresses. Correcting these details early is easier than removing finished cladding later.
Tip： Many installation problems begin with incorrect preparation, not with the visible panel surface.
Panel profile determines how boards connect and attach to the supporting framework. Hollow panels, solid panels, grooved boards, and interlocking profiles may use different fixing arrangements. Their internal structure and edge design can also affect support requirements and finishing details.
Before selecting a method, review the profile drawing and installation guide. Confirm whether the system uses clips, screws, or another approved connection. Check how the manufacturer specifies panel orientation, joint placement, and edge finishing. Do not assume that a method suitable for one profile will work for another.

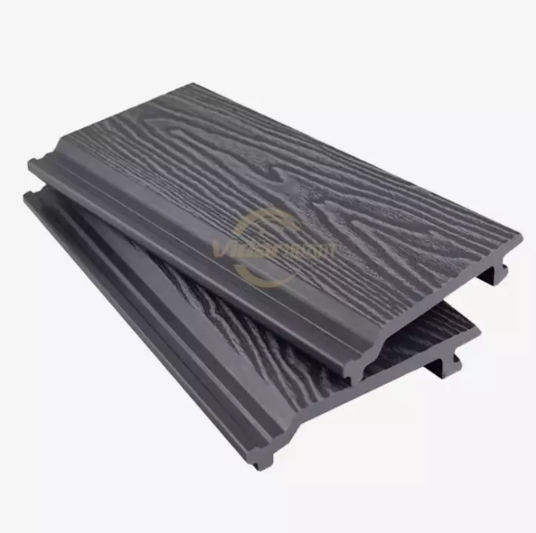

Vidar offers exterior cladding options, including 3D embossed exterior WPC wall panels. Buyers should confirm the selected product's dimensions, fixing method, and intended application before finalizing the installation plan.
Clips may provide concealed connections for compatible panel systems. Screws may be required for other profiles or specific fixing locations. The correct option depends on the panel design, framework, and manufacturer's instructions.
Check the approved fastener type, position, and installation procedure. Confirm whether the system requires pre-drilling or particular clearance around the fixing point. Avoid mixing components from different systems unless their compatibility has been verified.
For large projects, standardize the approved fixing components before work begins. This helps contractors maintain consistent installation quality and simplifies later maintenance. Keep the product instructions available so installers can check details when unusual conditions arise.
Rainy locations need careful drainage and weather detailing. Coastal environments may also expose metal components to salt and moisture. Buyers should select suitable fasteners and support materials based on the site's exposure conditions.
Check the wall's flashing, drainage paths, and ventilation requirements. Ensure that the panel system suits the intended exterior application. A decorative surface finish alone does not establish resistance to every environmental condition.
Ask the supplier for available product information relevant to the project. Where the building faces severe weather, have the complete cladding design reviewed against applicable building requirements. Product selection and installation details should work together as one system.
Before ordering, confirm the panel dimensions, profile, surface finish, fixing system, and required accessories. Provide the supplier with wall measurements, substrate details, and project exposure conditions. This helps identify potential installation issues before materials arrive.
Request technical documents and samples where appropriate. Check whether the selected panels can be finished using the planned corner trims and edge components. Also confirm packaging, quantities, delivery schedules, and product identification for larger orders.
Keep the approved specifications with the purchase order. This creates a clear reference for checking delivered materials and resolving discrepancies. It also helps contractors avoid unapproved substitutions during installation.
Tip： Confirm panel and accessory compatibility before approving the final purchase order.
Inspect the entire wall after installation. Check panel alignment, joint consistency, fixing points, expansion gaps, and corner details. Look for damaged edges, visible surface defects, loose components, or panels that appear uneven.
Review the top, bottom, and opening details carefully. Confirm that trims are secure and that drainage outlets remain unobstructed. Check the work against the approved drawings and manufacturer's instructions rather than judging appearance alone.
Record any defects and correct them before handover. For commercial projects, photographs and inspection notes can help document the completed work. Keep the product information and installation records available for future maintenance.
Check the designated drainage outlets and ventilation paths. Make sure they remain free from debris, packaging material, and excess sealant. Inspect the base and other transitions for signs of trapped water or blocked openings.
The inspection should follow the design of the complete wall system. Do not remove required seals or alter flashing without technical guidance. If water entry or persistent dampness appears, investigate the cause rather than assuming the WPC panel itself is responsible.
Routine cleaning helps maintain the appearance of exterior cladding. Remove loose dust and debris using a method suitable for the panel finish. For more stubborn dirt, follow the manufacturer's approved cleaning instructions.
Avoid aggressive chemicals, abrasive tools, or high-pressure cleaning unless the product guidance permits them. Unsuitable methods may damage the surface or affect its appearance. Test any approved cleaning product on a small, inconspicuous area when recommended.
Set an inspection schedule based on the building's exposure, use, and maintenance plan. Check the cladding periodically for loose fixings, damaged trims, blocked drainage, and visible panel movement. Additional checks may be useful after severe weather or nearby construction work.
Address problems promptly and use compatible replacement components. Keep records of repairs and any changes to the installation. Consistent maintenance helps building owners identify developing issues before they require more extensive work.
Proper WPC wall panel installation requires accurate measurements, secure framing, suitable fasteners, and effective drainage. Correct expansion gaps also help prevent installation problems.
Vidar Material Technology Co., Ltd. offers exterior WPC wall panels in various profiles and finishes, helping buyers find suitable cladding options for outdoor projects.
A: Prepare the wall, install the subframe, fix panels, and finish edges.
A: Yes, suitable drainage and ventilation help manage moisture.
A: Use compatible clips or screws specified by the manufacturer.
A: They allow movement caused by temperature changes.
A: Yes, use anchors suitable for the brick substrate.
