A beautiful deck can fail beneath the surface. Poor support, tight gaps, or trapped water often cause early problems. Correct WPC decking installation starts below the boards. This guide explains each step, from site preparation to final inspection, so your deck stays stable, clean, and easier to maintain.
● WPC decking needs a firm, level, and well-drained base. Never place full-length boards directly on soil or an unstable surface.
● Confirm the board profile before planning the subframe. Solid, hollow, traditional, and capped boards may need different joist spacing or edge details.
● Install joists perpendicular to the decking boards. Add support beneath every board end, joint, border, and concentrated load.
● Keep the first board straight. Its position controls every row installed afterward.
● Use compatible starter clips, hidden clips, screws, joists, and trims. Mixed systems may create poor grip or uneven gaps.
● Allow space for thermal movement beside walls, posts, board ends, and fixed structures.
● Do not block ventilation or drainage beneath the deck.
● Inspect fasteners, gaps, cuts, edges, and water flow before opening the area for use.
● Follow the product-specific installation guide whenever its requirements differ from general practice.
Check whether the boards are solid or hollow. Also identify a traditional composite or capped co-extruded surface. These details affect handling, support, cutting, fastening, and edge finishing.
Hollow boards are lighter, but their ends need proper support. Solid boards are heavier and may suit areas needing greater stability. Protect capped surfaces from scratches during transport and cutting.
Prepare the boards, joists, starter clips, intermediate clips, stainless steel screws, spacers, and edge trim. Use accessories designed for the selected board groove.
You will also need a tape measure, chalk line, level, drill, saw, rubber mallet, and protective equipment.
Note: Order clips and trims with the decking whenever possible. Compatible parts reduce fitting problems.
Measure the full area and record walls, drains, posts, doors, steps, and access covers. Plan the board direction and cutting points.
Calculate enough material for cutting waste. Store boards flat, supported, and protected from uneven heat before installation.
Remove soil, weeds, loose material, and construction debris. The base must support the subframe without sinking. Concrete, paving, compacted foundations, or structural supports may work when properly designed.
Correct high and low areas before laying joists. Water should move away from the building and escape beneath the deck. Never rely on the top surface to solve drainage below it.
Raised or elevated decks may need structural review and local approval.
Choose the board direction and decide where full boards, cuts, and end joints will appear. Use a chalk line to mark a straight starting edge.
Plan borders, steps, drains, and fixed obstacles before fastening anything. Avoid small cut pieces near entrances because they receive greater stress.
Place joists perpendicular to the WPC decking boards. Keep them parallel, level, and firmly secured to the base.
Required spacing depends on the board profile, thickness, load, and installation angle. Diagonal layouts usually need closer support. Never widen spacing only to reduce material use.
Add support beneath board ends, butt joints, borders, steps, heavy planters, and busy entry points. Two meeting ends must each have secure fastening support.
Tip: Photograph the subframe before covering it. The images help locate joists during future repairs.
Attach starter clips along the first supporting edge. Keep them in one straight line because this row controls the full deck.
Insert the first board and check its clearance from walls. Confirm alignment before tightening the screws. Never force it against a fixed structure.
Place an intermediate clip into the board groove above each joist. Start the screw without fully tightening it. Slide the next board into position.
Use spacers or the clip design for consistent side gaps. Check alignment every few rows. Tighten screws evenly after the boards sit correctly.
Clips should hold each board without crushing its groove. Keep the surface grain direction consistent when required.
Measure each final cut separately because walls may not be square. Support both sides during sawing and make clean cuts.
Every board end needs secure support. Where two boards meet, support both ends and leave the required gap.
Cut carefully around posts, drains, and access covers. Avoid narrow pieces that may flex or look unfinished.
Install fascia, corner trim, or edge banding around visible ends. Use a method compatible with the selected board profile.
Pre-drill trim when required. Keep fasteners straight and avoid fixing trim so tightly that it blocks movement.
Preserve openings for airflow and drainage. Finish steps and exposed corners without sharp edges.
WPC decking expands and contracts as temperatures change. Long boards, installation temperature, and local climate affect the required clearance.
Leave gaps beside walls, posts, curbs, and fixed structures. Board ends also need separation at joints. Never press boards into a closed frame.
Hidden clips often control side gaps. However, final spacing must match the selected system. Use consistent accessories and check gaps throughout installation.
Uneven gaps reduce visual quality and may restrict drainage.
Note: Gap and joist measurements are not universal. Verify them against the exact board profile and project conditions.
Water must leave the deck and the space below it. Keep drainage channels clear of joists, trim, and waste.
Provide airflow beneath raised decking. Give extra attention to pools, gardens, roofs, and waterfront areas.
Solid boards are heavier and need careful lifting. Hollow boards are easier to handle, but cut ends require support and neat covering.
Do not fasten unsupported hollow sections. Use the designed grooves and clip system whenever specified.
Traditional WPC decking may have brushed, embossed, or woodgrain surfaces. Keep the chosen face upward and maintain one direction.
Capped boards have a protective outer surface. Avoid dragging them across rough ground and remove metal fragments quickly.
A private patio has different load demands from a public walkway or pool deck. Busy areas need stronger edge and subframe support.
Add support beneath entrances, seating zones, steps, and concentrated loads. Confirm structural requirements before installation.
Use fascia, corner trim, or edge banding to cover visible board ends. The finish should protect the profile while allowing drainage and movement.
Align trim with doors, steps, and borders. Keep screw lines neat because perimeter details remain highly visible.
Mark cut-outs from fixed reference lines. Leave movement clearance around posts and walls. Keep drain covers removable.
Do not hide inspection points beneath permanently fixed boards. Future access can prevent expensive deck removal.
Support each tread and riser independently. Avoid wide unsupported overhangs. Keep the board surface direction consistent for a clean appearance.
Check step height, depth, slip resistance, and edge visibility. Follow local safety requirements for public or elevated areas.
An uneven base creates rocking joists and inconsistent board levels. It may also trap water below the deck. Correct the foundation before installing the subframe.
Wide joist spacing can allow boards to flex. The problem becomes worse at joints, diagonal layouts, or high-load areas. Use the board supplier’s spacing requirement.
Tight boards may press against walls or nearby boards during hot weather. This pressure can cause movement, lifting, or distorted joints.
Excessive force may damage clips or board grooves. Tighten each screw evenly and stop when the system sits firmly.
Fascia, joists, and construction debris can block water routes. Inspect the subframe before closing the perimeter.
Walk across the deck and check for movement, noise, raised edges, or uneven rows. Inspect clips, joints, cuts, borders, and steps.
Confirm that gaps remain open and drainage works. Correct loose parts before the area enters service.
Sweep away dust, packaging, screw fragments, and cut pieces. Wash the boards using a suitable cleaning method.
Do not leave adhesive, oil, cement residue, or metal particles on the surface. Early cleaning protects the finished appearance.
Keep the product guide, layout measurements, accessory details, and subframe photographs. These records support future maintenance, expansion, or board replacement.
Installation Stage | Main Action | Key Check |
Site preparation | Create a stable, drained base | No movement or standing water |
Layout | Mark board direction and edges | Straight starting line |
Subframe | Level and secure joists | Correct support at joints |
First board | Install starter clips | Board remains straight |
Main boards | Use hidden clips and spacers | Even gaps and firm fastening |
Cutting | Support all board ends | Clean cuts and movement space |
Finishing | Add trim and inspect | Open drainage and safe edges |

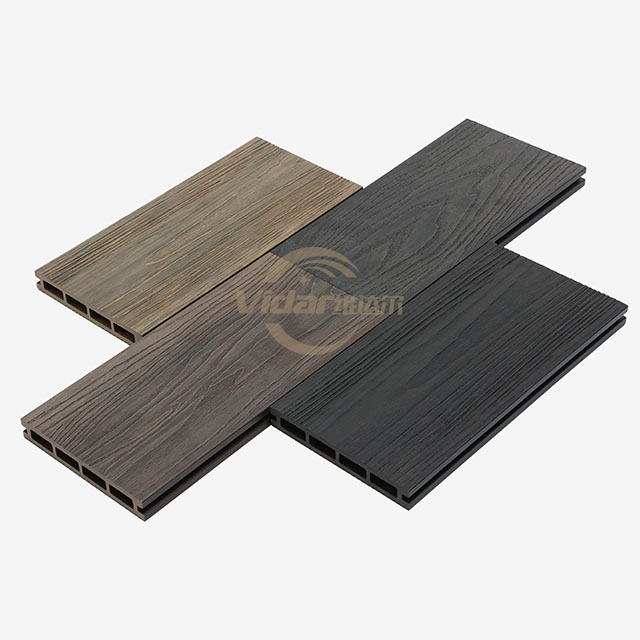

Correct installation protects the deck from movement, water, and uneven support. Careful joists, gaps, clips, and edge details create lasting value. Vidar provides solid and hollow WPC decking, including traditional and capped surfaces. Its compatible joists, clips, screws, and trims support efficient outdoor projects. Proper planning helps these products deliver stable performance and lower maintenance.
A: No. WPC decking needs a stable, drained subframe.
A: Most grooved boards use clips and stainless steel screws.
A: Gaps allow movement, drainage, and surface ventilation.
A: Cost depends on area, subframe, labor, and accessories.
A: It is heavier and may need different support requirements.
A: Check joist support, damaged clips, and screw tension.
